Name: LED Light Wiring Harness Kits
Brand: Diode Dynamics
SKU: DD4104
Price: 40.0 USD
Availability: InStock

$40.00

Shipping calculated at checkout.

Backlight

Backlight Compatible (4-Pin)

NO Backlight (2-Pin)

Outputs

Single

Dual

Duty Type

Heavy Duty

Ultra Heavy Duty

Light Duty

Quantity

Complementary products

Heavy Duty Single Output 4-pin Wiring Harness Features

Powers Diode Dynamics LED pods with backlight functionality.
Connects directly to the battery to power your LED pods.
High capacity 14AWG wiring.
Single Deutsch DT output connector.
30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.

Stage Series. This harness is intended to be used with our Stage Series LED Pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and a Deutsch DT connector for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below. Click here for the installation guide.

C1 Sport: 1.2A
C1 Pro: 1.7A
SSC2 Sport: 0.6A
SSC2 Pro: 1.75A
SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
SS3 Pro Mainbeam: 2.7A, Backlight: 0.03A

Control through OEM Aux Switches. This harness includes an OEM aux switch adapter wire that allows you to control your lights using a factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, you will use the included toggle switch adapter wire to mount a switch.

Ultra Heavy Duty Single Output 4-pin Wiring Harness

Powers 5-8 Pod SS5 CrossLink Pro Lightbars.
Connects directly to the battery to power your LED pods.
High capacity 10AWG wiring.
Single Deutsch DT-P output connector.
60A waterproof fuse, and 80A 12V relay to safeguard the electrical systems in your pods.

Stage Series. This harness has been designed specifically to safely power CrossLink Pro Lightbars with five (5) or more SS5 Pro LED Pods. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. You have the option to control your pods using the included three-way switch to toggle between the backlight, off, and the main beam, or control them through your Auxiliary Switch Bank with the included adapter. This harness uses high capacity 10AWG wiring and a Deutsch DT-P connector for simple plug-and-play installation.

This harness safely powers up to 45A of auxiliary lamps. The SS5 Pro draws 6.7A per pod. Click here for the installation guide.

Compatibility. Please note that this harness has a DT-P size output connector. This is intended to connect to a corresponding Ultra-Heavy-Duty (UHD) SS5 Splitter harness, to build a multi-pod lightbar. This connector will not plug directly into any LED product offered by Diode Dynamics.

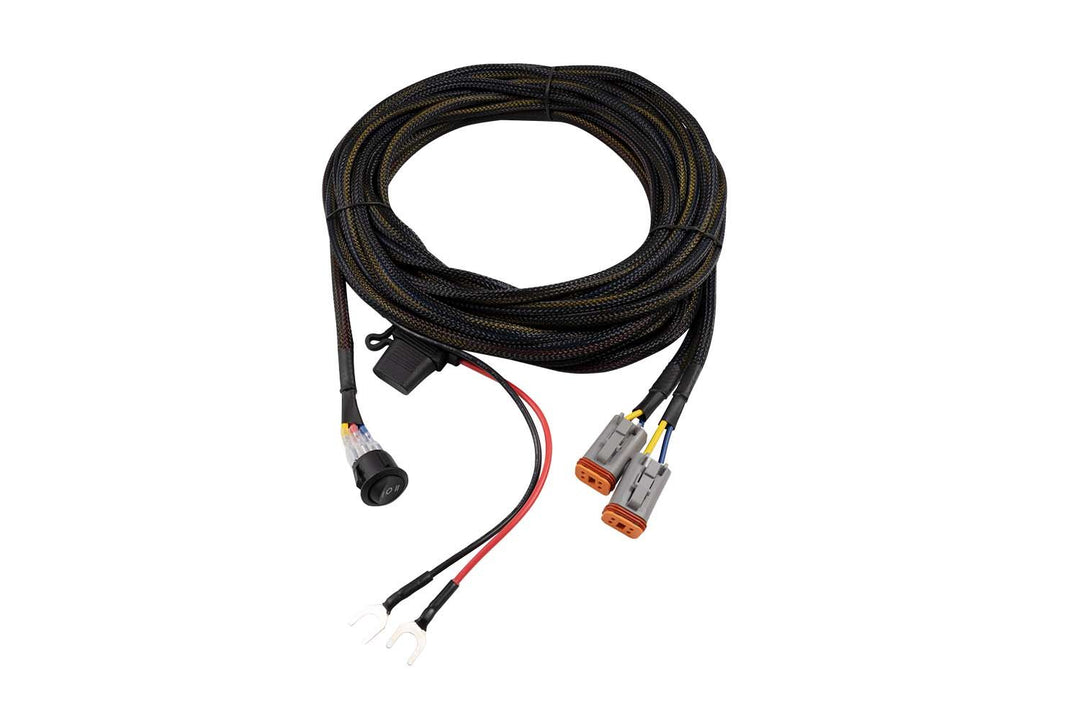

Light Duty Dual Output 4-pin Wiring Harness

Powers Diode Dynamics LED pods with backlight functionality.
Connects directly to the battery to power your LED pods.
High capacity 16AWG wiring.
Dual Deutsch DT output connectors.
15A waterproof fuse to safeguard the electrical systems in your pods.

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 16AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below. Click here for the installation guide.

C1 Sport: 1.2A
C1 Pro: 1.7A
SSC2 Sport: 0.6A
SSC2 Pro: 1.75A
SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
SS3 Pro Main Beam: 2.7A, Backlight: 0.03A
SS3 Max Main Beam: 3A, Backlight: 0.03A

Heavy Duty Dual Output 4-pin Wiring Harness

Powers Diode Dynamics LED pods with backlight functionality.
Connects directly to the battery to power your LED pods.
High capacity 14AWG wiring.
Dual Deutsch DT output connectors.
30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below. Click here for the installation guide.

C1 Sport: 1.2A
C1 Pro: 1.7A
SSC2 Sport: 0.6A
SSC2 Pro: 1.75A
SS3 Sport Mainbeam: 1.1A, Backlight: 0.03A
SS3 Pro Mainbeam: 2.7A, Backlight: 0.03A
SS3 Max Mainbeam: 3A, Backlight: 0.03A
SS5 Sport: 2.8A
SS5 Pro: 6.7A

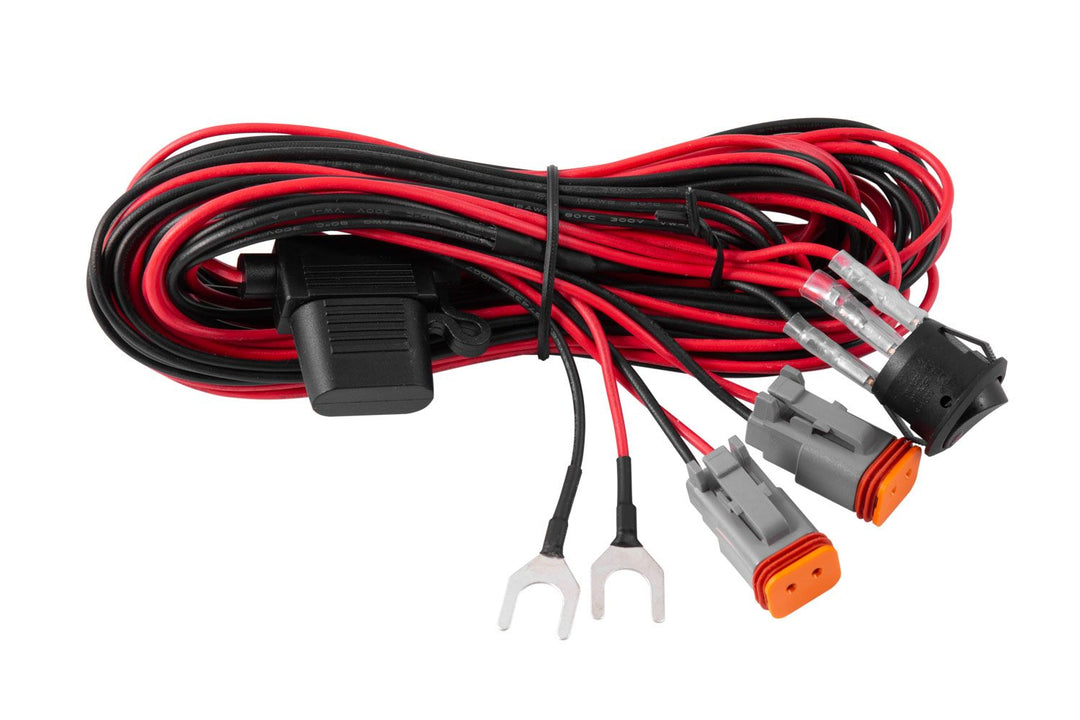

Light Duty Dual Output 2-Pin Wiring Harness

Powers Diode Dynamics Stage Series light bars and LED pods.
Connects directly to the battery to power your light.
High capacity 18AWG wiring.
Dual Deutsch DT output connectors.
15A, waterproof fuse to safeguard the electrical systems in your light.

Stage Series. This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 18AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below. Click here for the installation guide.

SS3 Sport: 1.1A
SS3 Pro: 2.7A
SS3 Max: 3A
SS6 Light Bar: 1.9A
SS12 Light Bar: 4.2A
SS18 Light Bar: 5.7A

Heavy Duty Dual Output 2-Pin Wiring Harness

Powers Diode Dynamics Stage Series light bars and LED pods.
Connects directly to the battery to power your light.
High capacity 14AWG wiring.
Deutsch DT output connector.
Black wire sheathing to protect cables.
30A, waterproof fuse and 60 amp, 12V relay to safeguard the electrical systems in your light.

Stage Series. This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below. Click here for the installation guide.

SS3 Sport: 1.1A
SS3 Pro: 2.7A
SS3 Max: 3A
SS6 Light Bar: 1.9A
SS12 Light Bar: 4.2A
SS18 Light Bar: 5.7A
SS30 Light Bar: 9.8A
SS42 Light Bar: 16A
SS50 Light Bar: 18.5A

Heavy Duty Single Output 2-Pin Wiring Harness

Powers Diode Dynamics Stage Series light bars and LED pods.
Connects directly to the battery to power your light.
High capacity 14AWG wiring.
Deutsch DT output connector.
Black wire sheathing to protect cables.
30A, waterproof fuse and 60 amp, 12V relay to safeguard the electrical systems in your light.

Stage Series. This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below. Click here for the installation guide.

SS3 Sport: 1.1A
SS3 Pro: 2.7A
SS3 Max: 3A
SS6 Light Bar: 1.9A
SS12 Light Bar: 4.2A
SS18 Light Bar: 5.7A
SS30 Light Bar: 9.8A
SS42 Light Bar: 16A
SS50 Light Bar: 18.5A
